50m/Roll Double Polyester Fiber Braid Reinforced Silicone Hose 3/16 Id Silicone Tubing

Brand Name : NL

Model Number : PDF

Certification : FDA

Place of Origin : Shanghai, China

MOQ : 50 Meter/Meters (Min. Order)

Price : $11.00 - $59.00 / Meter

Payment Terms : T/T, L/C, Western Union

Supply Ability : 5000 Meter/Meters per Week

Delivery Time : Quantity(Meters) 1 -50 Est. Time(days) 7

Packaging Details : Standard packing. If you have any special requirement, please tell us in time.

Material : Silicone

Color : White

Size : 3/16"~1-1/4"

Length : 50m/roll

Temp. Range : -60℃~200℃

Processing Service : Moulding, Cutting

Contact Now

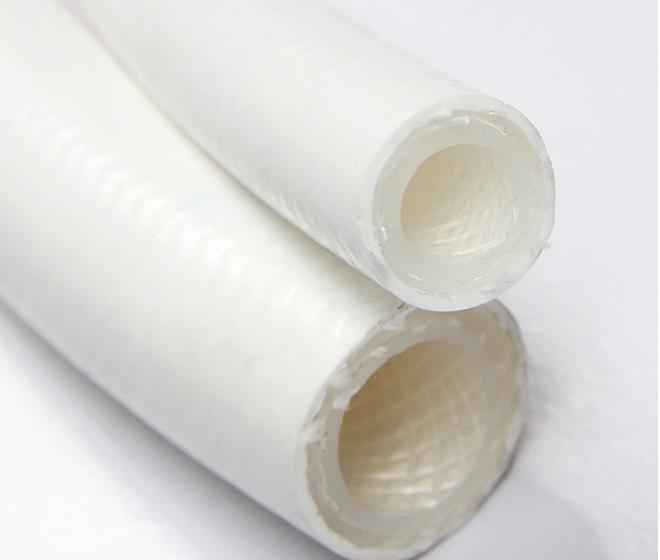

Double polyester Fiber Braid Reinforced Silicone Hose

Construction: Type PDF is manufactured from High purity platinum cured Silicone with double polyester fiber reinforcement.

Temp. Range: -60°C and 200°C.

Colour: White (Coloured covers available)

Applications: For transporting liquids at high pressure. Suitable for CIP and SIP cleaning.

Certification: FDA, USP, BFR, USDA, ISO 10993

Length: Standard maximum length is 20 meters, for a longer length, please contact us.

** PRESSURE DECREASE BY 1% FOR EVERY 1°C ABOVE 100°C.

Part no.	ID		OD	Bending radius	Work pressure	Bursting pressure	Vacuum
Part no.	in.	mm	mm	mm	bar	bar	bar
PDF005	3/16"	4.8	13	27	25	75	0.91
PDF006	1/4"	6.4	16	30	24	72	0.91
PDF008	5/16"	7.9	18	37	23	69	0.91
PDF010	3/8"	9.5	20	45	22.5	67.5	0.85
PDF013	1/2"	12.7	23	51	20	60	0.83
PDF016	5/8"	15.9	27	62	18	54	0.81
PDF019	3/4"	19	30.5	76	16.5	49.5	0.72
PDF022	7/8"	22	33	100	14	42	0.45
PDF025	1"	25.4	38	118	12.5	37.5	0.35
PDF032	1-1/4"	32	46	180	10	30	0.14

50m/Roll Double Polyester Fiber Braid Reinforced Silicone Hose 3/16 Id Silicone Tubing

Packaging & Shipping

50m/Roll Double Polyester Fiber Braid Reinforced Silicone Hose 3/16 Id Silicone Tubing

FAQ

1. Are you manufacture?

We started business from trading, but now we have invested and holded several factory in china.

2. Can you ship to my country?

We can ship to all the countries around the world by air or sea.

3. How much is the shipping charge to my country?

It depends on your country located and the weight of goods.

4. What's the price term?

EXW, FOB, CIF, CFR

5. What's your payment?

T/T, L/C, Western Union
